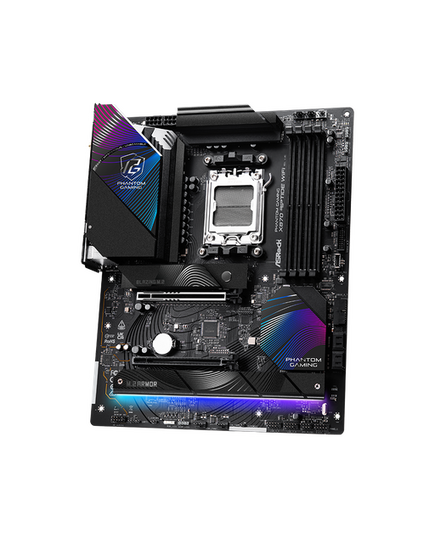

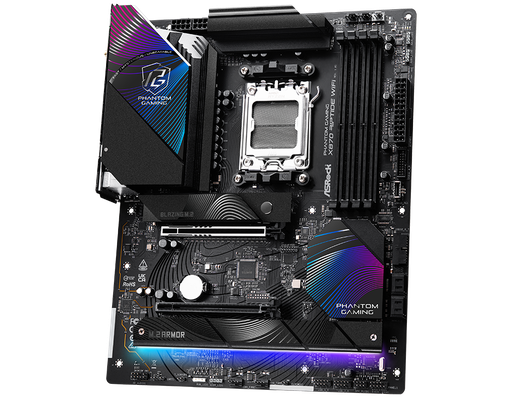

ASRock X870 Riptide WiFi Motherboard ATX με AMD AM5 Socket
- Cooling
- Connectivity
FAST
MYSTERIOUS
UNBEATABLE
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
PerformanceCoolingConnectivityStylish DesignDIY FriendlyPerformance
Optimized VRM Design
14+2+1 Power Phase DesignFeaturing sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.Dr. MOSDr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
8 Layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.
High Speed M.2 Solution
PCIe Gen5 Blazing M.2The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
DIY Friendly Design
M.2 Heatsink Toolless DesignM.2 Bottom Heatsink
M.2 Heatsink Toolless Design
Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.
Enlarged M.2 Heatsink
XXL M.2 HeatsinkAnti-Drop Screw
XXL M.2 Heatsink
The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.
Cooling
Intelligent Cooling Design
Aluminum HeatsinkThe first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.Connectivity
Killer™ Ethernet E3100
The Killer E3100 2.5 Gbps Ethernet controller is designed specially for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.
Wi-Fi 7
Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
Enhanced USB4 Type-C
USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate.
More than USB Transfer Speed
Lightning Gaming PortsUltra USB Power
Lightning Gaming Ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
Front Panel USB 3.2 Gen2x2 Type-C Header
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Stylish Design
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
DIY Friendly
Deluxe Accessories
The ARGB Splitter Cable enables easy management of multiple ARGB devices through a single controller. With its splitting capability, it streamlines your lighting setup for a unified and dynamic aesthetic.
Reinforced Steel Slot
[PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
EZ Setting
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1 : Install Auto Driver Installer
step2 : Update drivers needed
step3 : Done!
BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking¹ capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
1. Overclocking and/or undervolting AMD processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of AMD’s published specifications will void any applicable AMD product warranty, even when enabled via AMD hardware and/or software. This may also void warranties offered by the system manufacturer or retailer. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting AMD processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability. GD-106.© 2024 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo, Radeon, Ryzen and combinations thereof are trademarks of Advanced Micro Devices, Inc. Other product names used in this publication are for identification purposes only and may be trademarks of their respective owners.Phantom GamingX870 Riptide WiFiPRODUCT BRIEF:
- Supports AMD AM5 Socket Ryzen™ 9000, 8000 and 7000 Series Processors
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8000+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
4 SATA3 - 2 USB4 Type-C (Rear),
1 USB 3.2 Gen2x2 Type-C (Front),
2 USB 3.2 Gen2 Type-A (Rear),
7 USB 3.2 Gen1 (3 Rear, 4 Front)
8 USB 2.0 (4 Rear, 4 Front) - Killer 2.5G LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region..png)
