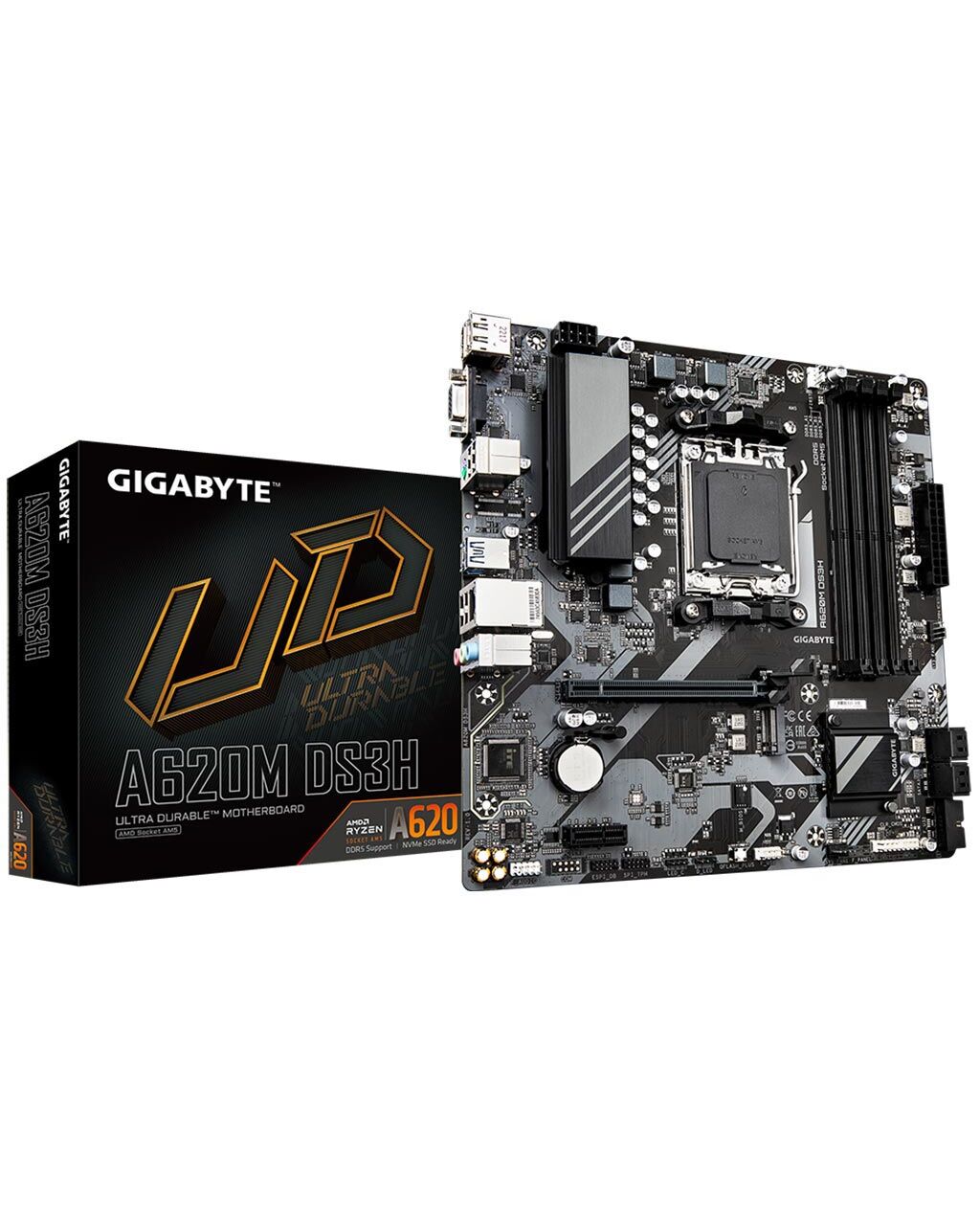

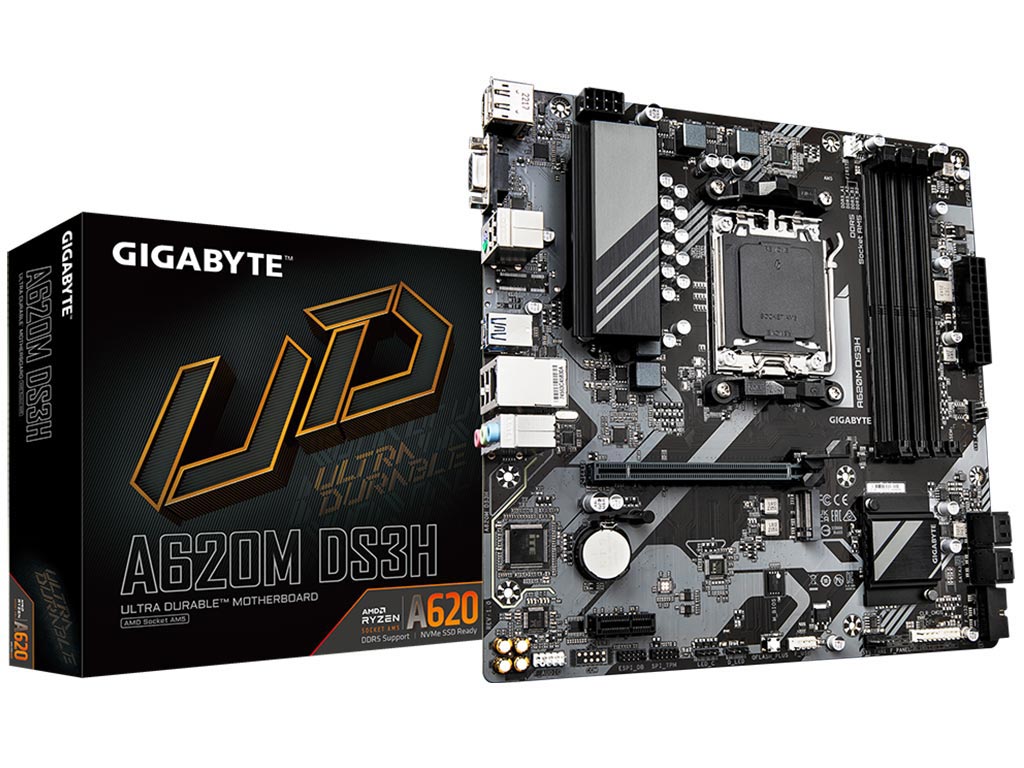

GIGABYTE MOTHERBOARD A620M DS3H DDR5
49849
Μεταφορικά
Τρόποι Πληρωμής

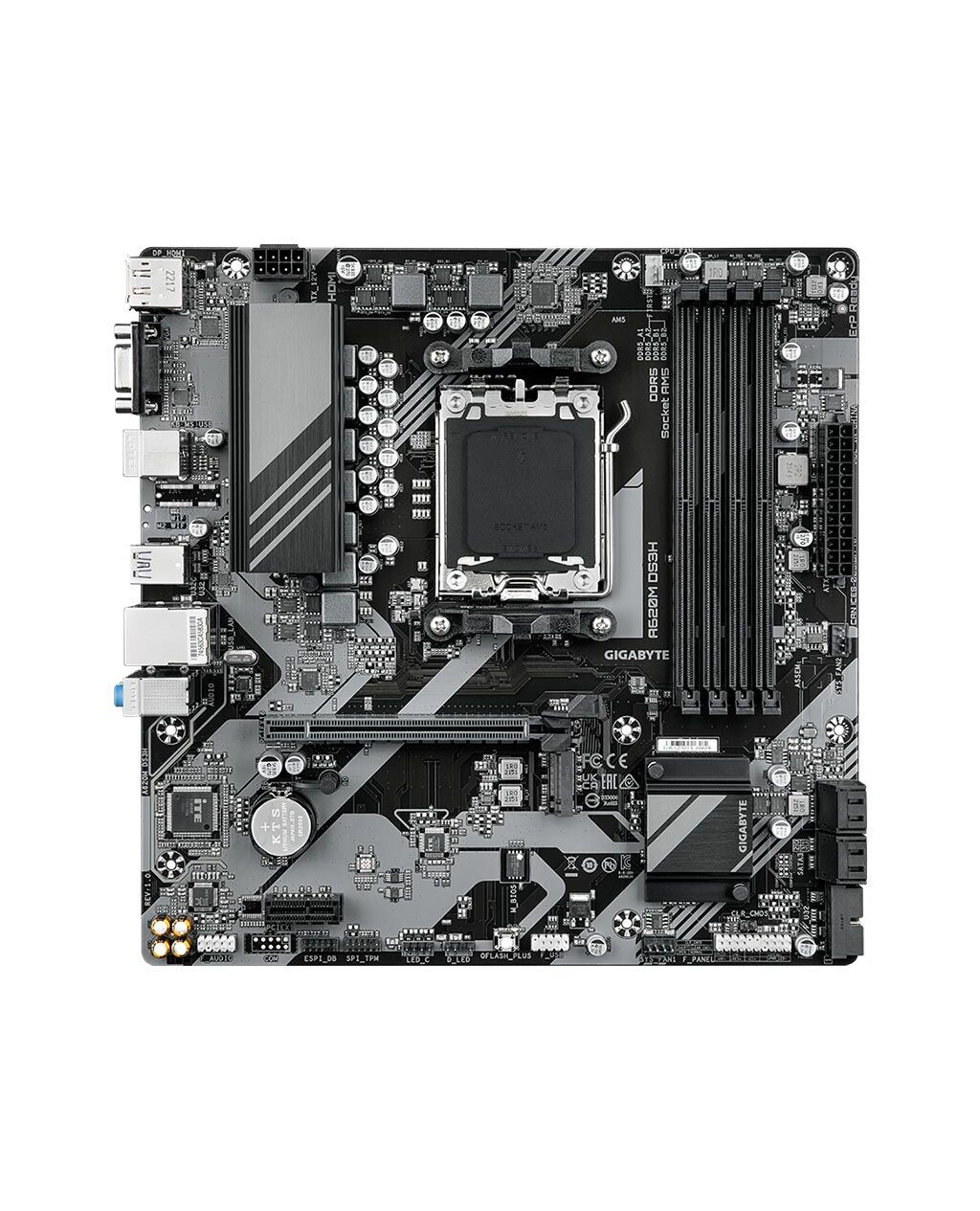

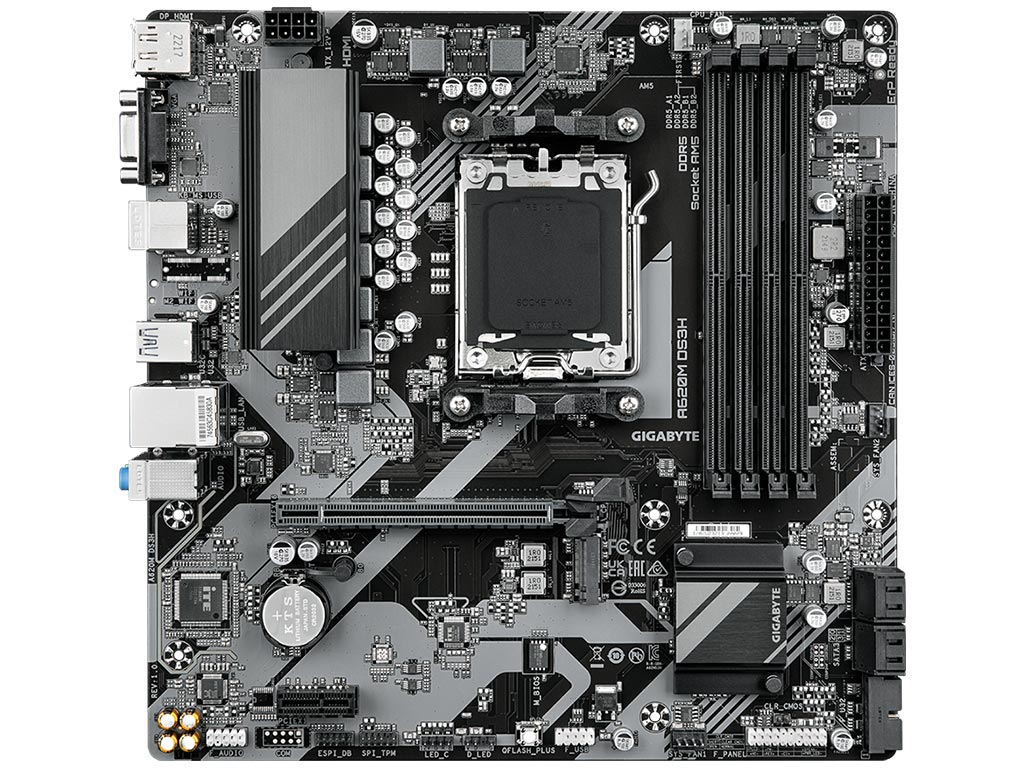

A620M DS3H
- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：GbE LAN
- Extended Connectivity：DP, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
.jpg)
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
.jpg)
| CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors |
| Chipset | AMD A620 |
| Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Onboard Graphics | Integrated Graphics Processor: - 1 x DisplayPort, supporting a maximum resolution of 3840x 2160 @144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x 2160 @60 Hz * Support for HDMI 2.1 version and HDCP 2.3. * Support for native HDMI 2.1 TMDS compatible ports. - 1 x D-Sub port, supporting a maximum resolution of 1920x 1200 @60 Hz Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support.) |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN | Realtek® GbE LAN chip (1 Gbps/ 100 Mbps/ 10 Mbps) |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/ GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper |

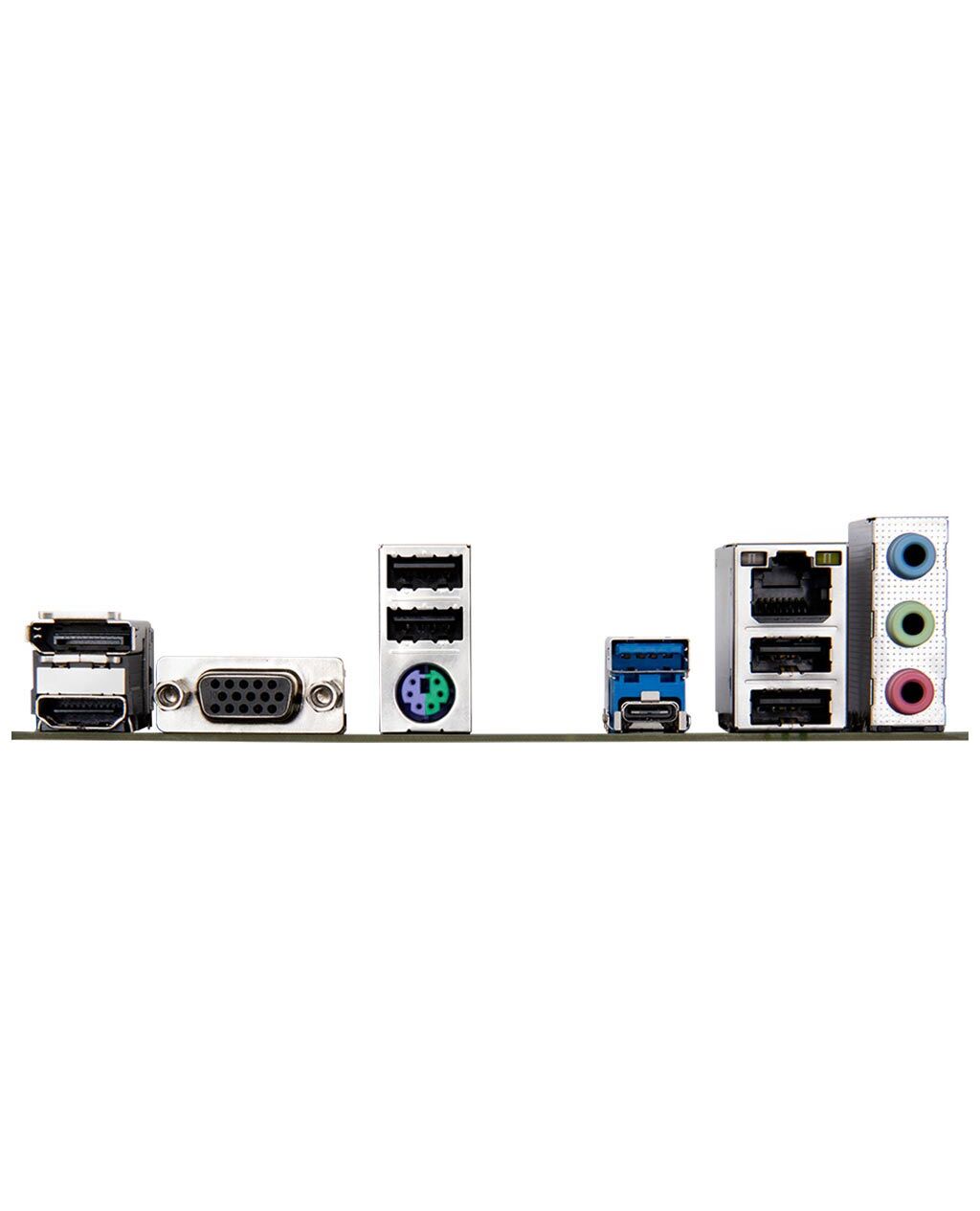

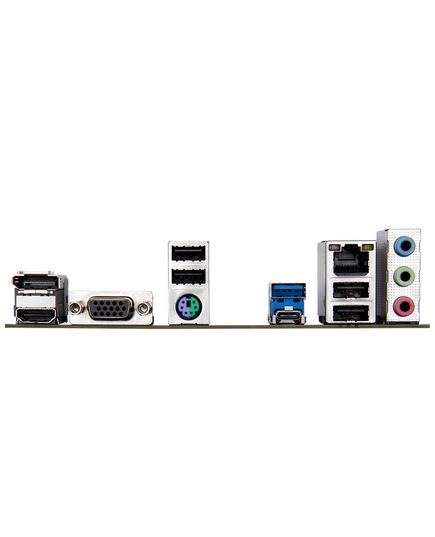

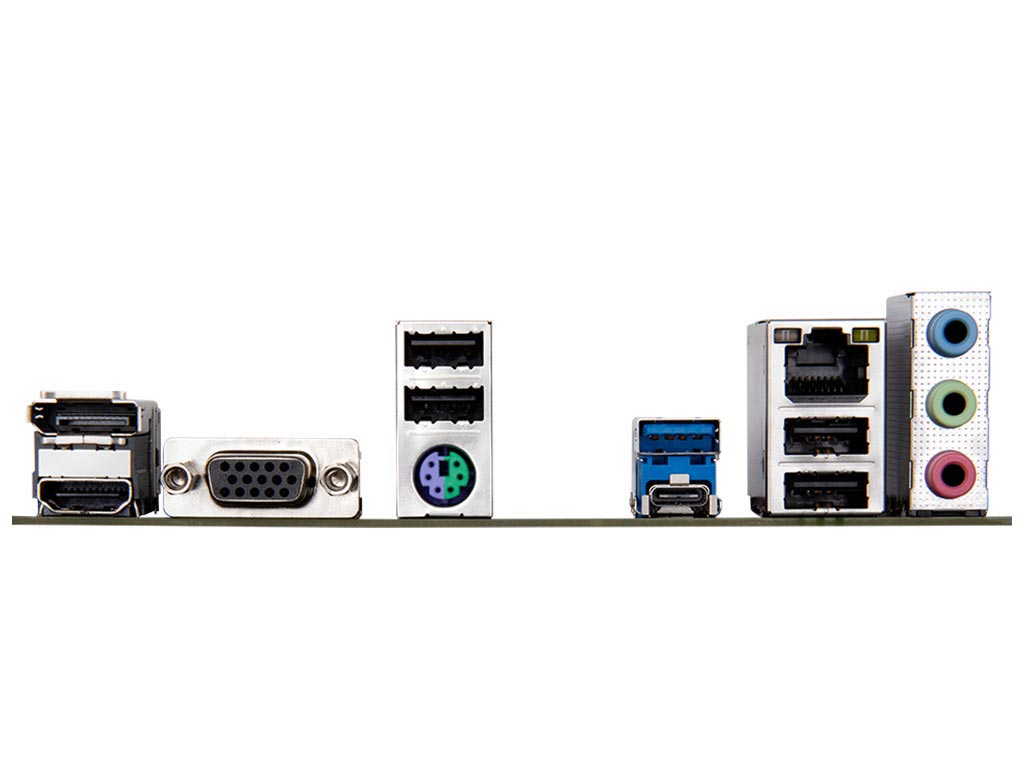

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x D-Sub port 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-FlashSupport for Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Τεχνικά Χαρακτηριστικά
| Κατασκευαστής | Gigabyte |
| Μοντέλο | A620M DS3H |
| Κατηγορία | Μητρικές Κάρτες |
| Socket | AM5 |
| Chipset | AMD A620 |
| Μέγεθος μητρικής | Micro ATX (24.4 x 24.4cm) |
| Τύπος Μνήμης | DDR5 |
| Αριθμός Dimm | 4 |
| Expansion Slots | 1x PCIe x16 4.0 1x PCIe x1 3.0 |
| Αποθήκευση | 4x SATA 1x M.2 |
| Έξοδοι Γραφικών | 1x HDMI v2.1 1x DisplayPort v1.4 1x VGA |
| Πρόσθετα Χαρακτηριστικά | LED Control USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
