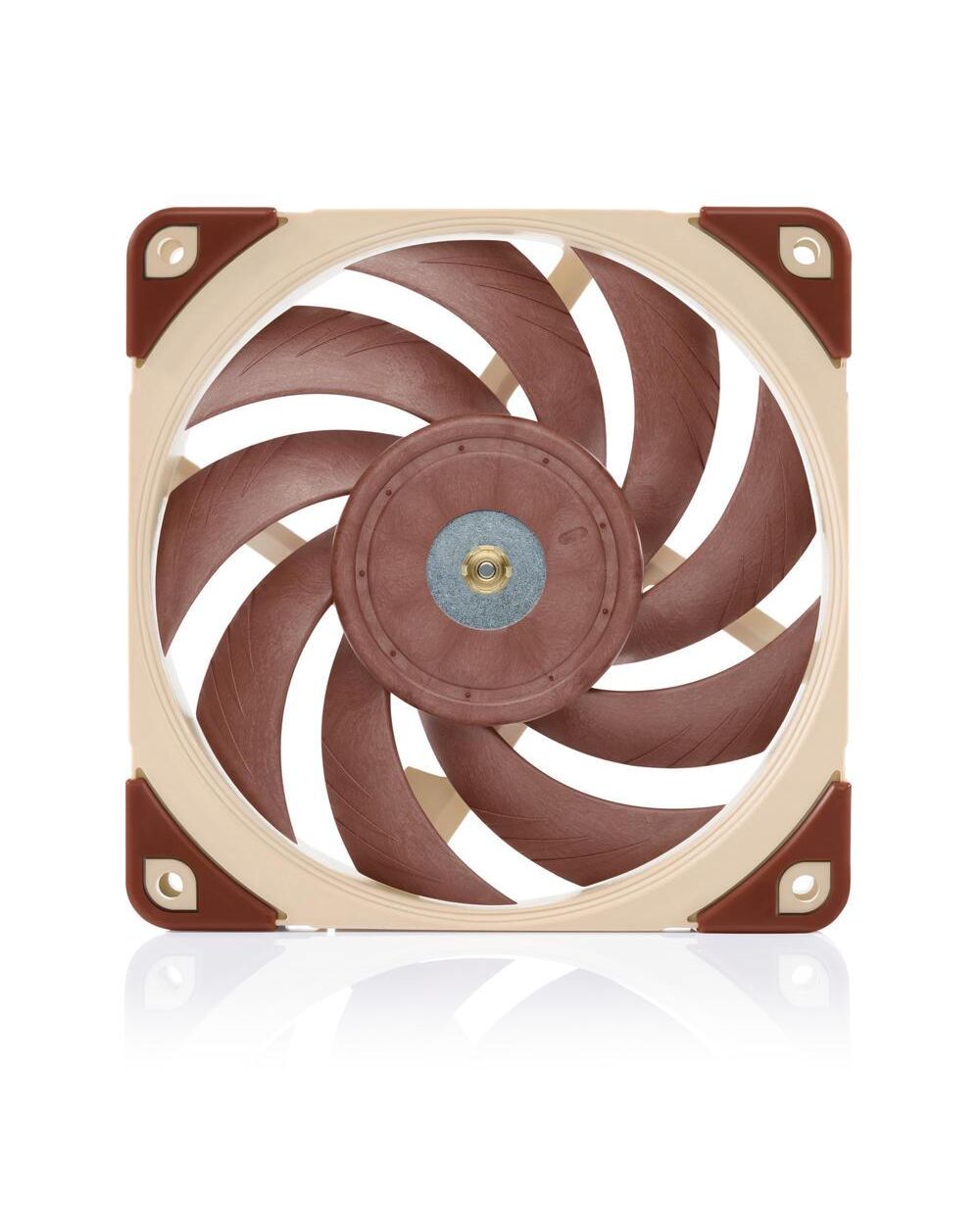

NF-A12x25 PWM
FAN Specification
Size
120x120x25 mm
Mounting hole spacing
105x105 mm
Connector & pin-configuration
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Material
Sterrox® LCP
Rotational speed (+/- 10%)
2000 RPM
Rotational speed with L.N.A. (+/- 10%)
1700 RPM
Min. rotational speed (PWM, +/-20%)
450 RPM
Airflow
102,1 m³/h
Airflow with L.N.A.
84,5 m³/h
Acoustical noise
22,6 dB(A)
Acoustical noise with L.N.A.
18,8 dB(A)
Static pressure
2,34 mm H₂O
Static pressure with L.N.A.
1,65 mm H₂O
Max. input power
1,68 W
Max. input current
0,14 A
Operating voltage
12 V
Voltage PWM signal
5 V
MTTF
> 150.000 h
Scope of delivery
Low-Noise Adaptor (L.N.A.)
4-pin y-cable
30cm extension cable
NA-AV2 anti-vibration mounts
Anti-vibration gasket for water cooling radiators
Fan screws
Warranty
6 years
