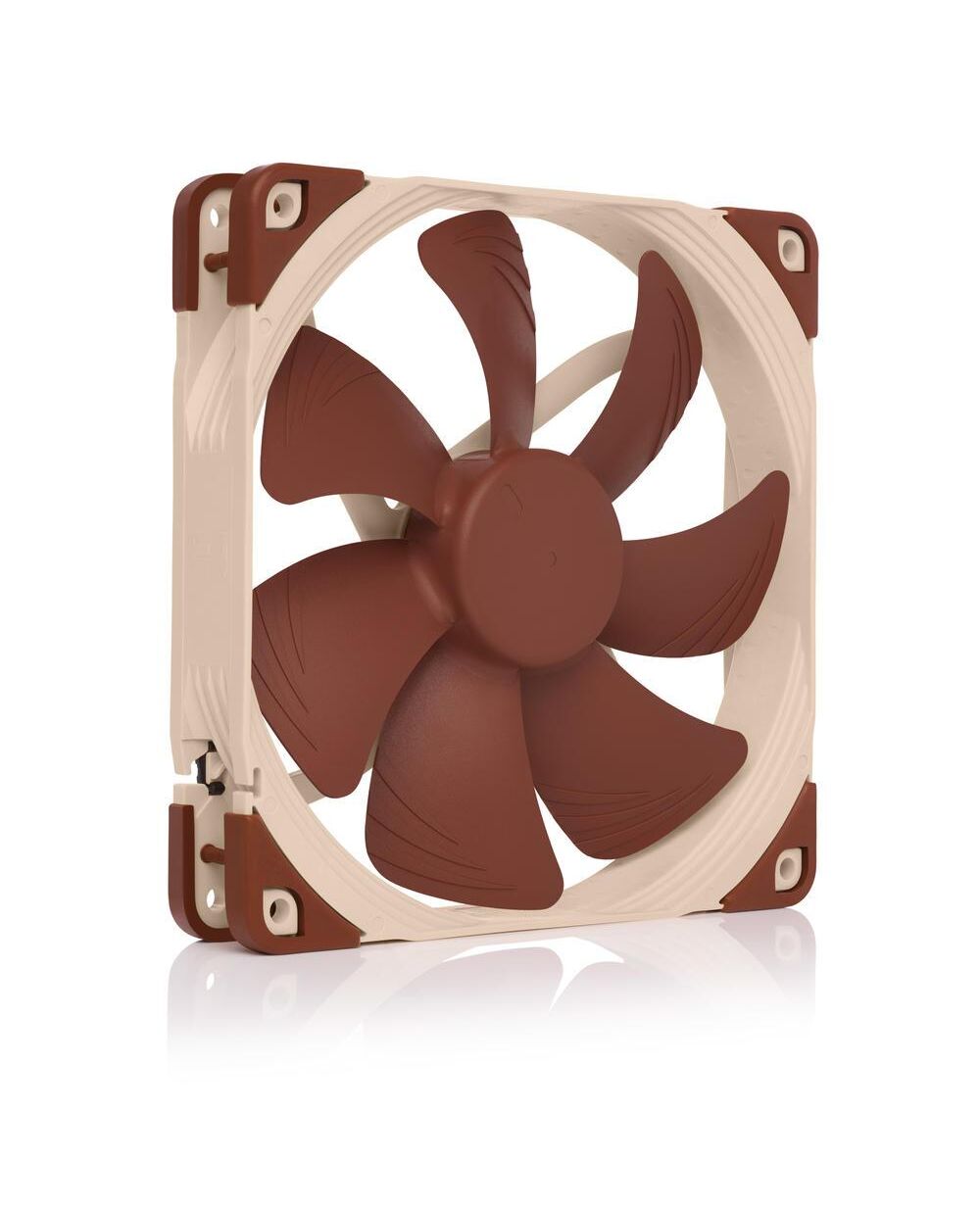

NF-A14 PWM
FAN Specification
Size
140x140x25 mm
Mounting hole spacing
124,5x124,5 mm
Connector & pin-configuration
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)
1500 RPM
Rotational speed with L.N.A. (+/- 10%)
1200 RPM
Min. rotational speed (PWM, +/-20%)
300 RPM
Airflow
140,2 m³/h
Airflow with L.N.A.
115,5 m³/h
Acoustical noise
24,6 dB(A)
Acoustical noise with L.N.A.
19,2 dB(A)
Static pressure
2,08 mm H₂O
Static pressure with L.N.A.
1,51 mm H₂O
Max. input power
1,56 W
Max. input current
0,13 A
Operating voltage
12 V
MTTF
> 150.000 h
Scope of delivery
Low-Noise Adaptor (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
Warranty
6 years
