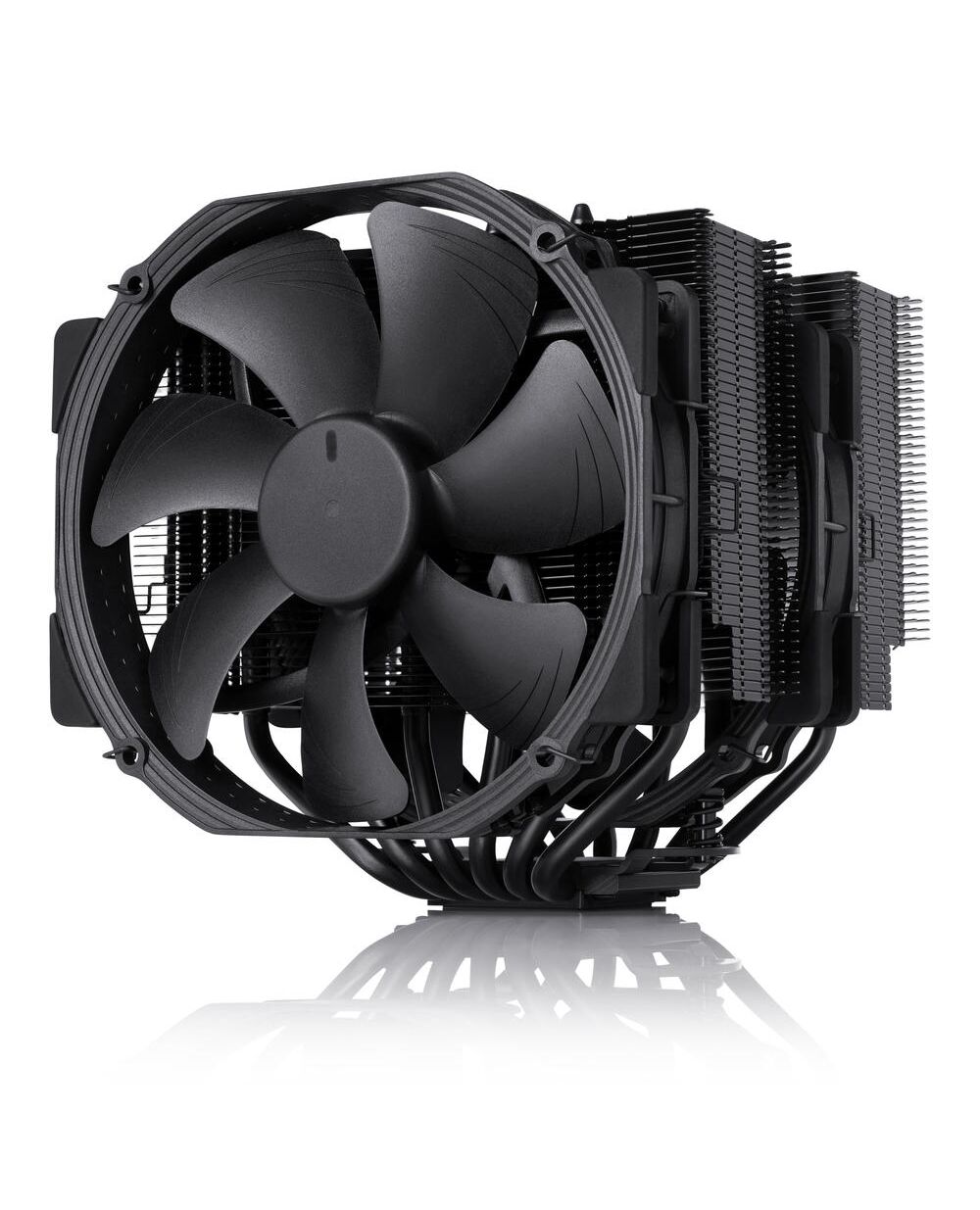

NOCTUA NH-D15 chromax.black
Cooler Specification
Socket compatibility
Intel LGA1700 (included since Q4 2021, older coolers require NM-i17xx-MP83), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011-0, LGA2011-3 (Square ILM) & AMD AM4, AM5
Height (without fan)
160 mm
Width (without fan)
150 mm
Depth (without fan)
135 mm
Weight (without fan)
980 g
Height (with fan)
165 mm
Width (with fan)
150 mm
Depth (with fan)
161 mm
Weight (with fan)
1320 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP
see CPU compatibility list
Fan compatibility
140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25
Scope of delivery
Black NH-D15 heatsink
2x NF-A15 HS-PWM chromax.black premium fan
2x Low-Noise Adaptor (L.N.A.)
4-pin PWM Y-cable
NT-H1 high-grade thermal compound
Black SecuFirm2™ Mounting Kit
Noctua Metal Case-Badge
Warranty
6 Years
FAN Specification
Model
2x Noctua NF-A15 HS-PWM chromax.black
Bearing
SSO2
Max. rotational speed (+/- 10%)
1500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1200 RPM
Min. rotational speed (PWM, +/-20%)
300 RPM
Max. airflow
140,2 m³/h
Max. airflow with L.N.A.
115,5 m³/h
Max. acoustical noise
24,6 dB(A)
Max. acoustical noise with L.N.A.
19,2 dB(A)
Voltage range
12 V
MTTF
> 150.000 h
