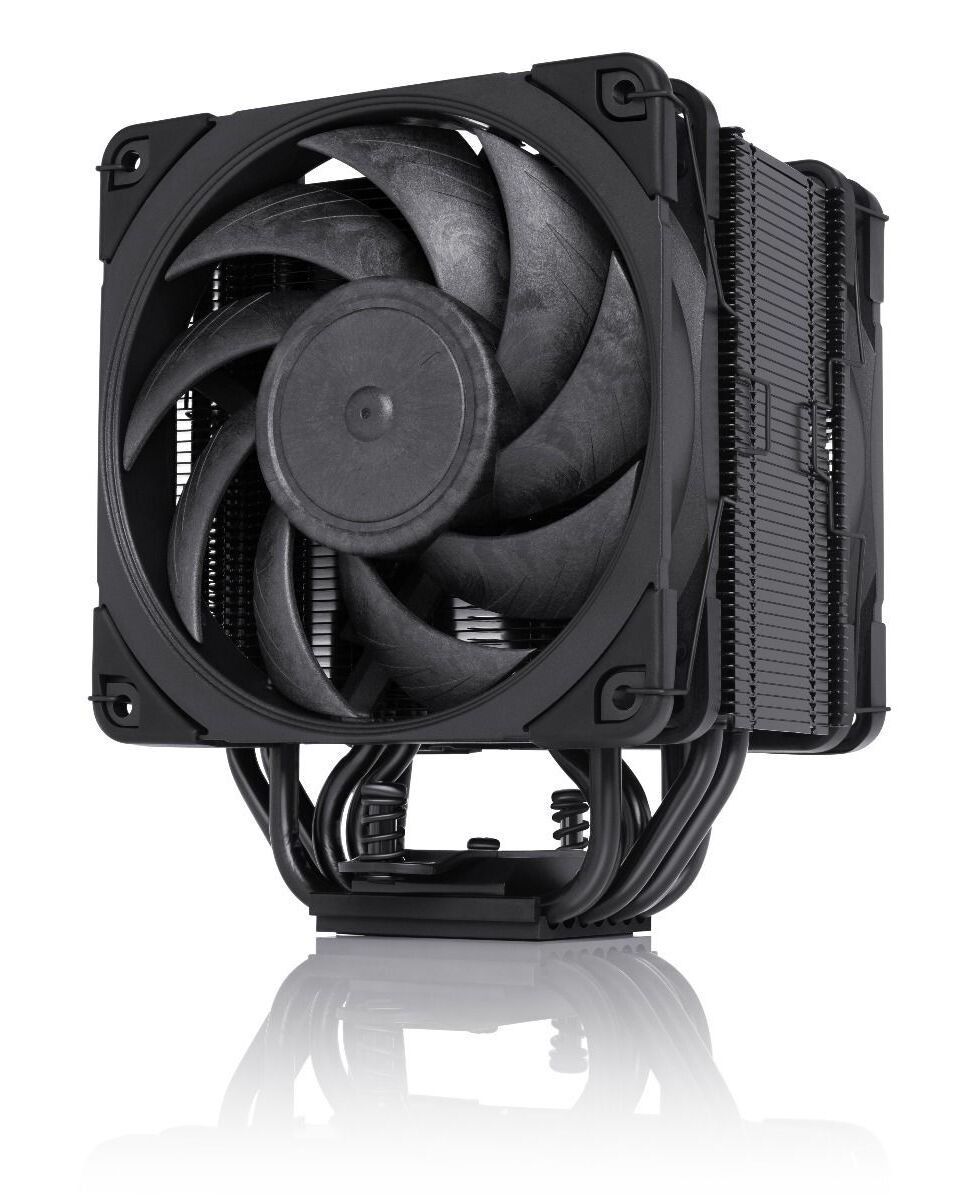

NOCTUA NH-U12A CHROMAX CO
Socket compatibility
Intel LGA1700, LGA1200, LGA1150, LGA1151, LGA1155, LGA1156, LGA2011, LGA2066 & AMD AM4, AM5
Height (without fan)
158 mm
Width (without fan)
125 mm
Depth (without fan)
58 mm
Weight (without fan)
760 g
Height (with fan)
158 mm
Width (with fan)
125 mm
Depth (with fan)
112 mm
Weight (with fan)
1220 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
NSPR
169
Max. TDP
see NSPR
Fan compatibility
120x120x25
Scope of delivery
Black NH-U12A heatsink
2x NF-A12x25 PWM chromax.black premium fan
2x NA-RC14 Low-Noise Adaptor (L.N.A)
NA-YC1 4-pin PWM y-cable
NT-H1 high-grade thermal compound
Black SecuFirm2™ mounting kit
Noctua Metal Case-Badge
Warranty
6 Years
FAN Specification
Model
Noctua NF-A12x25 PWM chromax.black
Bearing
SSO2
Max. rotational speed (+/- 10%)
2000 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1700 RPM
Min. rotational speed (PWM, +/-20%)
450 RPM
Max. airflow
102,1 m³/h
Max. airflow with L.N.A.
84,5 m³/h
Max. acoustical noise
22,6 dB(A)
Max. acoustical noise with L.N.A.
18,8 dB(A)
Voltage range
12 V
MTTF
> 150.000 h
