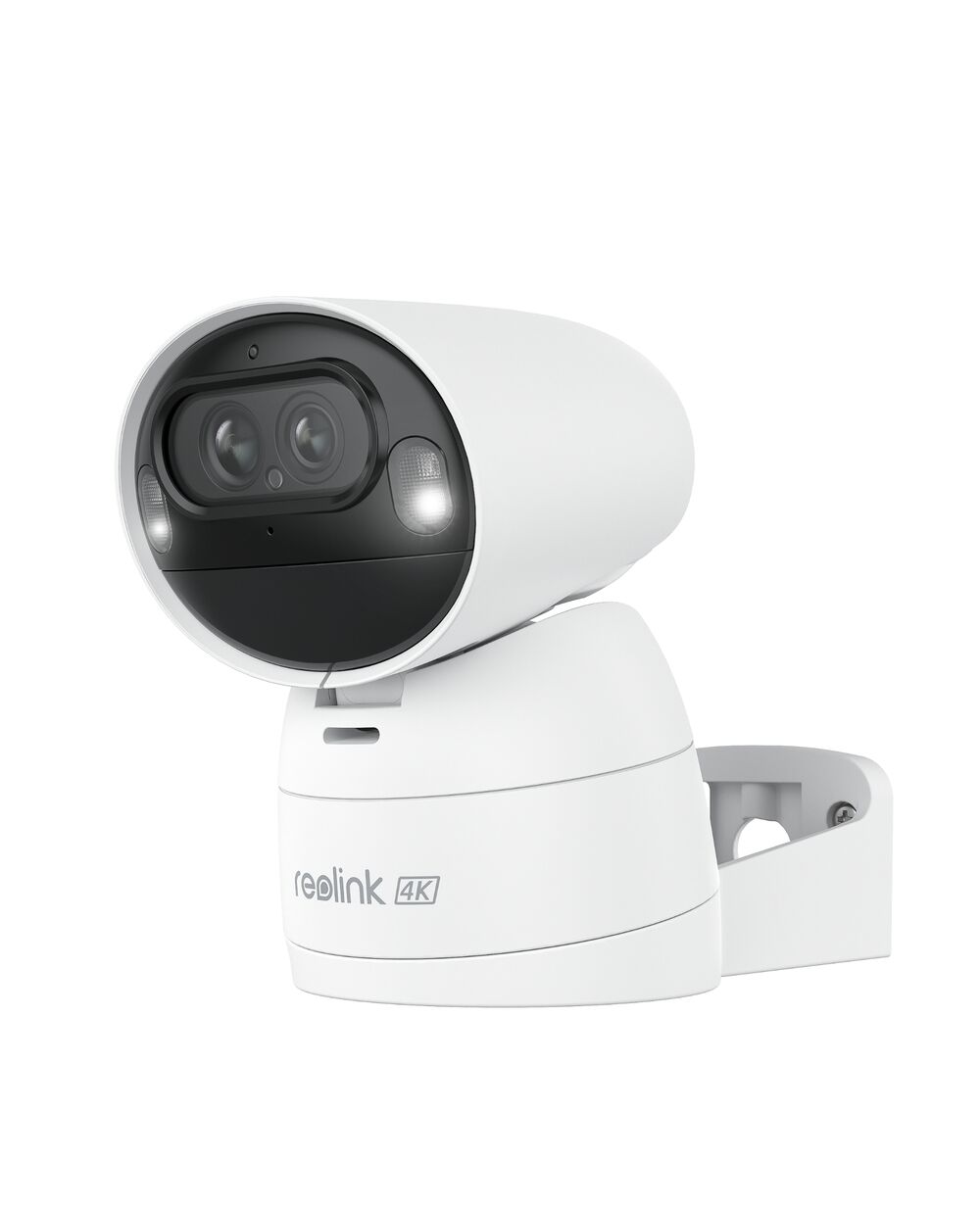

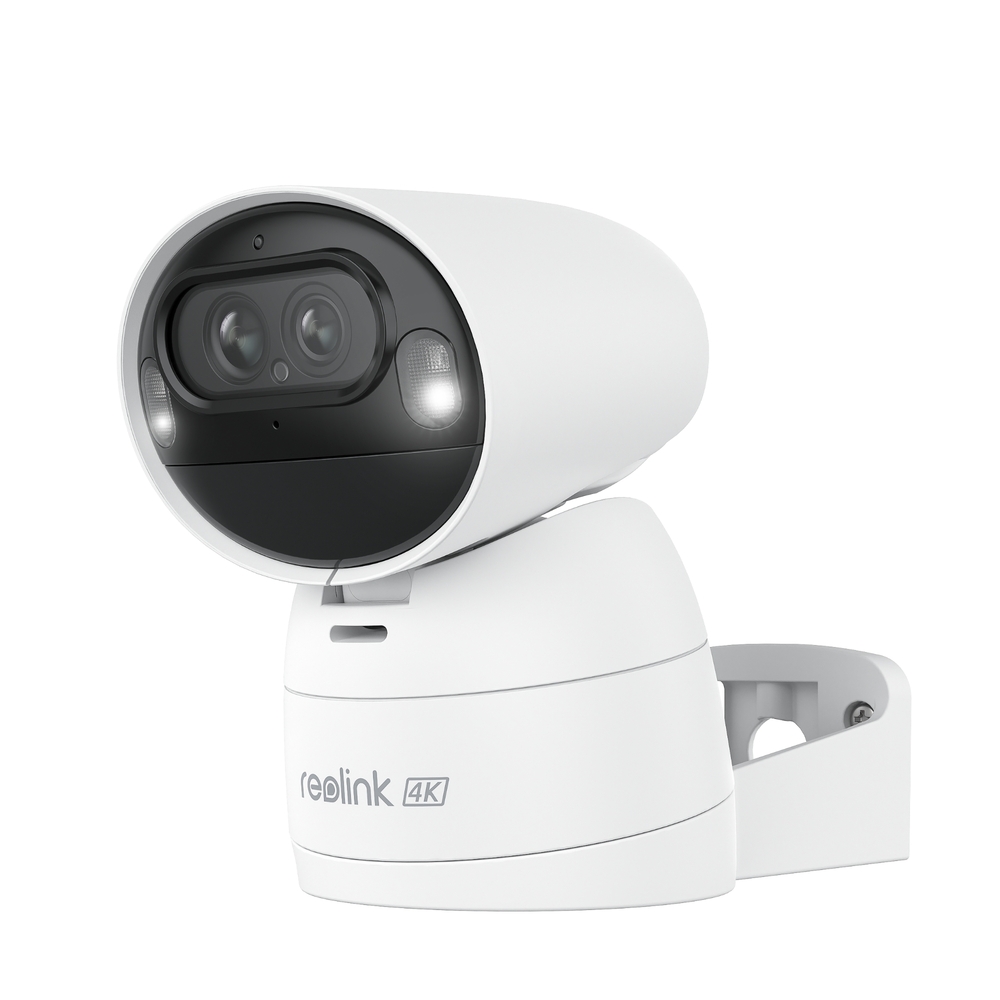

Reolink Argus Series B730

Reolink Argus Series B730

Specifications

Download as PDF

Video & Audio
Image Sensor
1/2.7" CMOS sensor

Resolution
3840×2160(8 megapixels)@15fps
1920×1080(2 megapixels)@15fps

Lens

Video Compression
H.264/H.265

Field of View
Lens 1: Horizontal: 105°; Vertical: 55°; Diagonal: 123°
Lens 2: Horizontal: 43°; Vertical: 25°; Diagonal: 49.5°

Infrared Night Vision
Up to 30 meters (100ft);
LED: 2pcs/2.15W/850nm (Auto-switching with IR-cut filter)

Color Night Vision
With spotlights: 2pcs/6000K/295 Lumen (15Meters, Adjustable)

Frame Rate
Main stream: 10fps - 15fps (default: 15fps)
Sub stream: 10fps - 15fps (default: 15fps)

Code Rate
Main stream: 1024Kbps - 4096Kbps (default: 2048Kbps)
Sub stream: 64Kbps - 672Kbps (default: 672Kbps)

Audio
Two-way audio

Power
Battery
4800mAh rechargeable battery  (Battery life varies based on settings, usage & temperature.)

Solar
Reolink Solar Panel 2 (6W)

Interface
Power Port
USB-C port

SD Card Slot
Supports Max. 128GB microSD card

Reset Button
Yes

Audio In/Out
Built-in microphone and speaker

Pan & Tilt
PT Angle(Max.)
Pan: 355°, Tilt: 50° (PT speed is configurable)

Preset Points
Suppots 1 guard position & up to 32 preset positions

Patrol
Not Supported

Power-off Memory Function
YES

Auto Tracking
YES

Wi-Fi
Wireless Standard
IEEE 802.11 a/b/g/n

Operating Frequency
2.4 GHz/5GHz

Wireless Security
WPA/WPA2

Software
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android

Protocols & Standards
SSL, TCP/IP, UDP, UPNP, SMTP, NTP, P2P

User Access
Max. 12 simultaneous streams (2 main & 10 sub streams)

Other Features
Smart Alarm
PIR detection; motion detection; person detection; vehicle detection; animal detection

PIR Detecting Distance
Adjustable, up to 11m (36ft)

PIR Detecting Angle
120° horizontal

Recording Modes
Motion recording

Time Lapse
YES

Smart Home Compatibility
Google Assistant

Cloud Storage
Supports Reolink Cloud (available in selected countries)

Working Environment
Operating Temperature
-10°C~55°C (14°F~131°F)

Operating Humidity
10% ~ 90%

Weatherproof
YES

Mechanical
Dimensions
Ø85*84*118mm

Weight Battery Included
476g

Warranty
Limited Warranty
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/.
